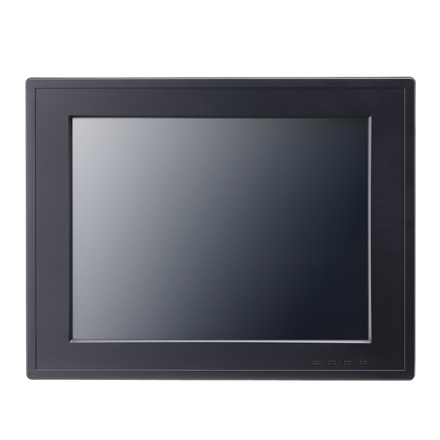

研华PPC-3120

>12.1" TFT XGA LED 面板,电阻触摸屏
>嵌入式 Intel ® Atom™ D2550 处理器,1.86 GHz
>系统内存最大支持4 GB DDR3 1066 SDRAM
>支持1个内置 SATA 2.5" HDD 和 1 x mSATA 插槽
>可选 PCI/PCIe x1 扩展套件
>无风扇低功耗设计及新的机构设计
>通过BIOS 调节RS-232/422/485
>COM1/COM2 pin9 RI/5V/12V 可调节(通过 BIOS
>LED 背光自动调节

  • 概述和特点
  • 产品规格
  • 订购信息

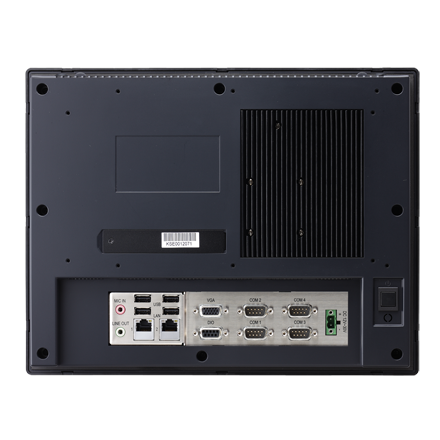

PPC-3120 是一款新型的12.1"工业平板电脑,搭载 Intel Atom D2550处理器,可满足严苛环境下的多种需求。基于无风扇设计,PPC-3120 在设备制造行业应用中,运行更稳定可靠。除此之外, 双 GbE LAN, 4 x 串口, 4 x USB 端口, GPIO 接口轻松实现设备间的互联。用户有好设计的前置LED 指示灯,可实时监测电源开关、存储访问和网络活动状态。


主要特点:

  • 12.1" TFT XGA LED 面板,电阻触摸屏
  • 嵌入式 Intel ® Atom™ D2550 处理器,1.86 GHz
  • 系统内存最大支持4 GB DDR3 1066 SDRAM
  • 支持1个内置 SATA 2.5" HDD 和 1 x mSATA 插槽
  • 可选 PCI/PCIe x1 扩展套件
  • 无风扇低功耗设计及新的机构设计
  • 通过BIOS 调节RS-232/422/485
  • COM1/COM2 pin9 RI/5V/12V 可调节(通过 BIOS)
  • LED 背光自动调节
  • 规格

    Display

    Backlight Life (hrs)                    50,000 hrs (typical)

    Luminance (cd/m2)                   600

    Max. Resolution                        1024 x 768

    Max. Colors                              16.2 M

    Viewing Angle                          80 (left), 80 (right), 70 (up), 70 (down)

    Display Type                            12.1" TFT LCD (LED Backlight)

    Pixel Pitch (mm)                       0.240 x 0.240


    Power Supply

    Input Voltage                           12-30 VDC



    LCD Display

    Brightness Control                     Yes



    Environment

    Relative Humidity                      10 ~ 95% @ 40° C (non-condensing)

    Vibration Protection  Operating        Vibration Protection                   Operating Random Vibration Test 5~500Hz, 1Grms, followI EC60068-2-64

    Shock Protection                       Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27

    EMC                                           BSMI, CE, FCC Class B

    Safety                                        CB, CCC, BSMI, UL

    Operating Temperature             0 ~ 50°C (32 ~ 122°F

    Storage Temperature                20 ~ 60°C (-4 ~ 140°F)

    Front Panel Protection              IP65 Compliant




    Processor System

    Memory                                   SO-DIMM x 1, DDR3 1066, Max 4 GB

    Bus Expansion                          1x Mini PCIe (Standard), 1 x PCI or 1 x PCIe (Optional)

    SSD                                           mSATA x1

    HDD                                        1 x 2.5" SATA HDD Bay (Internal)

    I/O Ports                      4 x Serial ports: 3 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS), 4 x USB2.0 ports,1 x Line-                                   out, 1x MIC-in, 1 x DB15 VGA ,1 x DB9 GPIO port (8 pin programable)

    Cache Memory                         1 MB

    Network (LAN)                         2 x 10/100/1000 Mbps Ethernet

    Watchdog Timer                      255 timer levels; setup by software

    Speaker                                    2 x 1W speakers

    CPU                                            Intel Atom D2550 1.86GHz 10W Dual Core CPU on board

    Chipset                                       Intel NM10 Touchscreen

    Light Transmission                     81±3%

    Resolution                                 2048 x 2048

    Controller                                  RS-232 interface

    Durability (Touches)                   36 million

    Touch Type                               Analog Resistive 5-wireOS Support


    OS Suppor                              Microsoft® Windows XPE / Windows XP Pro / WES7 32bit / WEC7 / Windows 7 32bit / Linux


    Physical Characteristics

    Dimensions                                325 x 253.8 x 58.4 mm (12.79" x 10" x 2.3")

    Weight                                      3.3 kg (7.27 lb)


     OS

    可选型号

    产品编号

    描述
    PPC-3120-RAE
    内置Intel Atom D2550(1.86GHz), 4G DDR3 max., 12.1" LED(1024 x768), 电阻式触摸屏, 3*RS-232, 1*RS-232/422/485, 2*Giga-LAN, 1*mSATA, 1* 2.5"HDD, 1*VGA, 1*GPIO, 4*USB 2.0, 1*mini PCIe, 1*Mic-in, 1*Line-out, PCI/PCIe可扩展, 12-30Vdc
